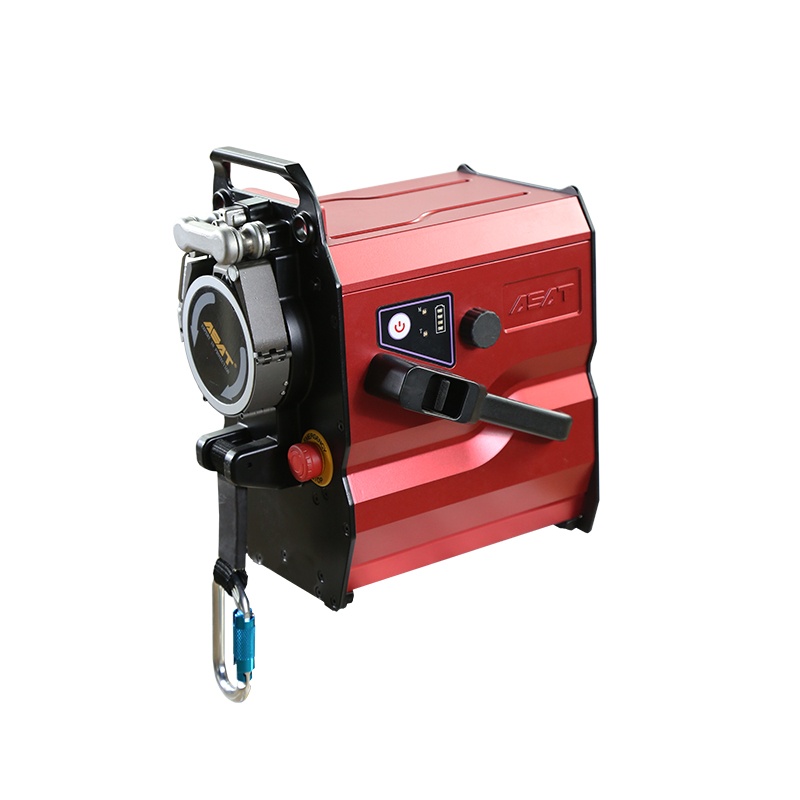

ASAT Power Ascender

ace 24

Description
Ask a Question
Reviews

ASAT power ascender can satisfy all the requirements of the operation personnel for ascending velocity, descending velocity,the crossing, safety, and reliability.
The ASAT product of the battery type can perform operations of ascending and descending along the rope of standard specification as a set of personal elevator.
By using the ASAT powered ascender, the inspection and maintenance personnel can ascend,descend or in any direction without difficulty in a safe, efficient and economic manner, which is the optimal choice for places difficult to access and impossible to access in other manners.

Power ascender could be applied for many industries:
• Renewable energy
• Energy and network
• Inspection and maintenance
• Rescue
• Cleaning and maintenance of high buildings

Technical information:
• Rope: Semi-static rope Φ11mm EN1891A
• Rated working load: 180kg
• Working load limit: 260kg
• Ascending speed: 0-30m/min （ Stepless speed）
• Descending speed: 0-40m/min （ Stepless speed）
• Manually descending speed: 0-40m/min （ Stepless speed）
• Running distance(Vertical): 700m@150kg travel capacity of ascending and descending alternatively,
300m@150kg travel capacity of ascending continuously"
• Charging time: ＜60min
• Operating temperature range: -30℃~+60℃
• Overheat protection: √
• Weight: 18kg(Incl.battery）
• Size: 30*23*35cm
• Fall protection: 0.5m （concrete ground）
• Remote control range(L): 0~150m （open space）
• Manual descending: √
• Swappable battery: √
• Ingress Protection: IP56
• CE certification: √
