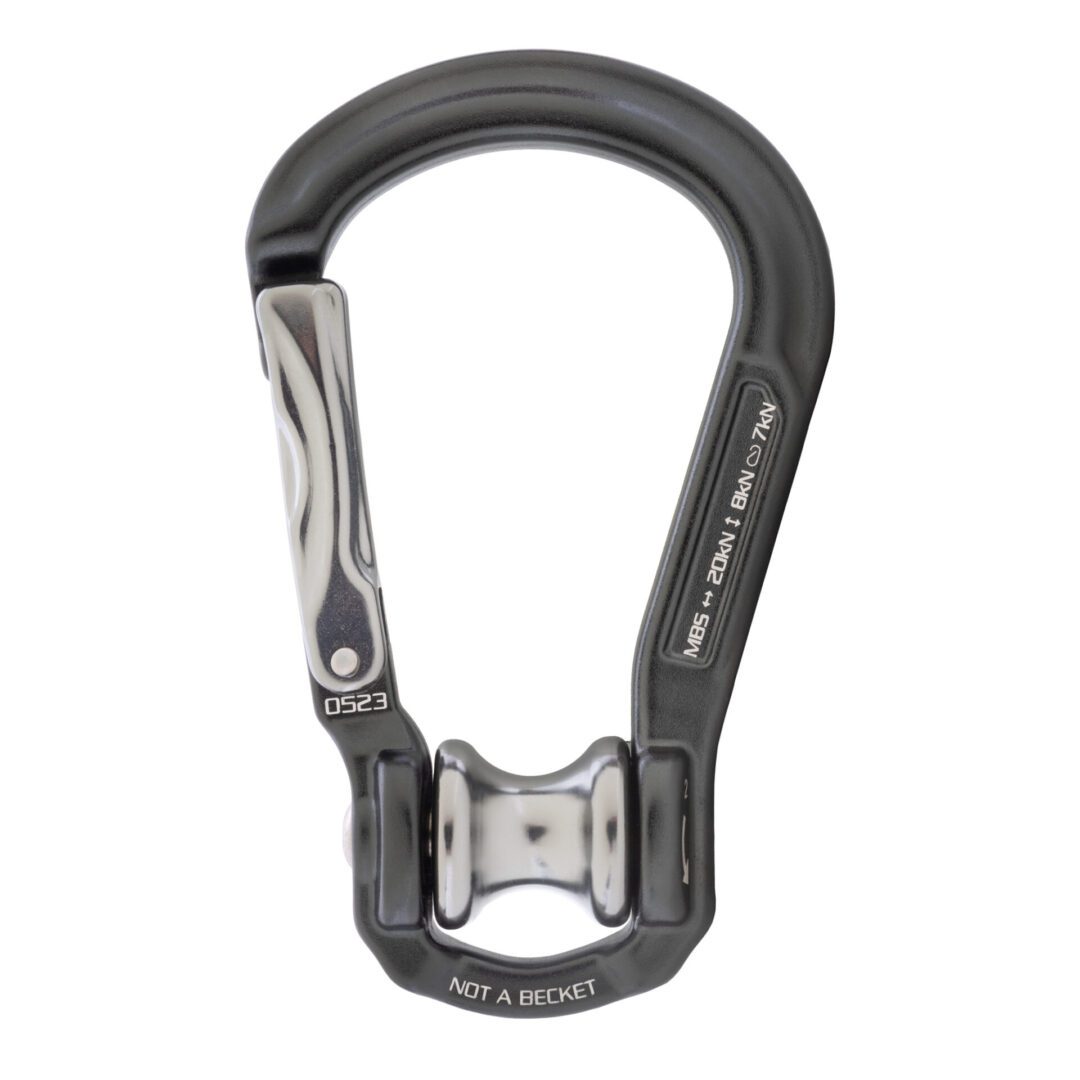

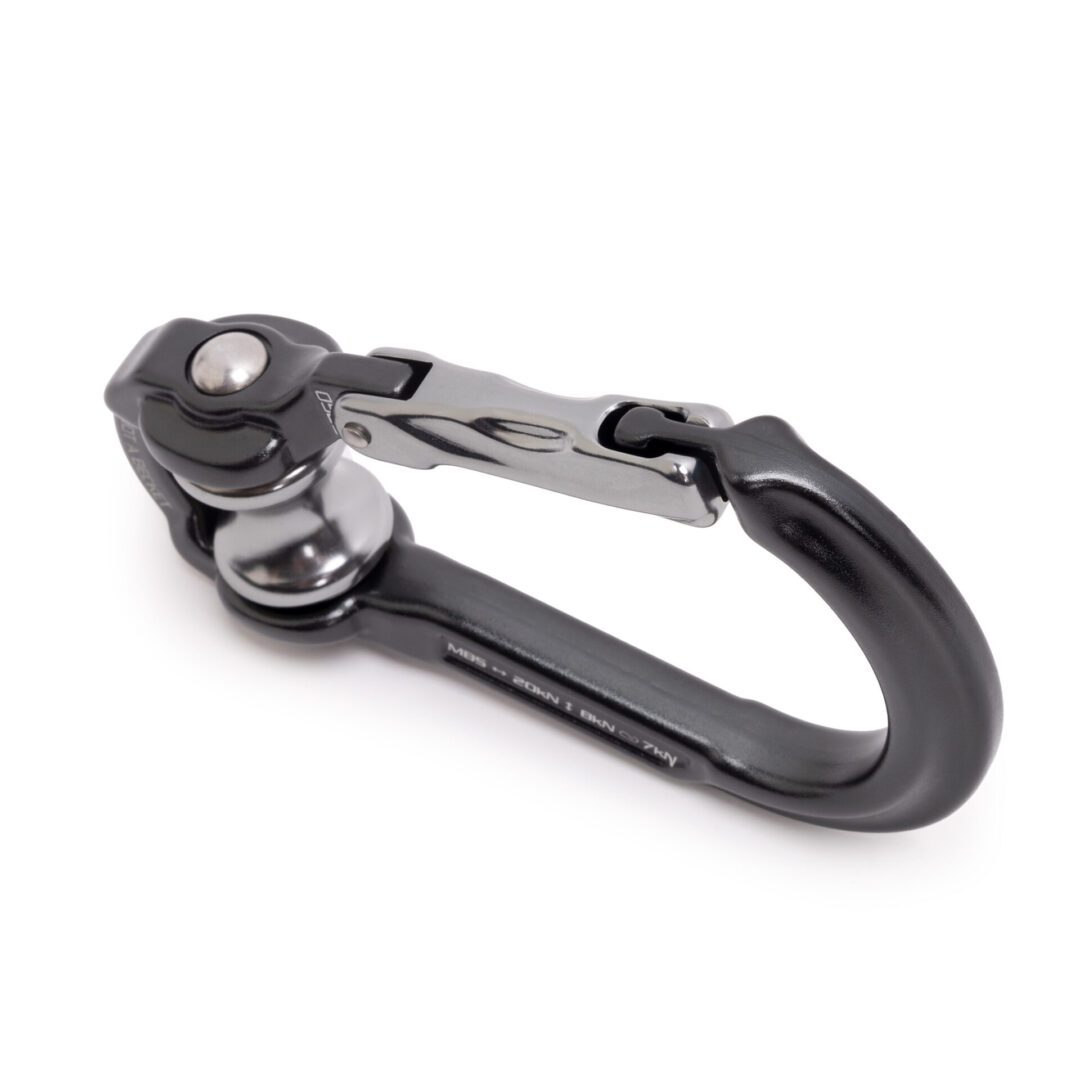

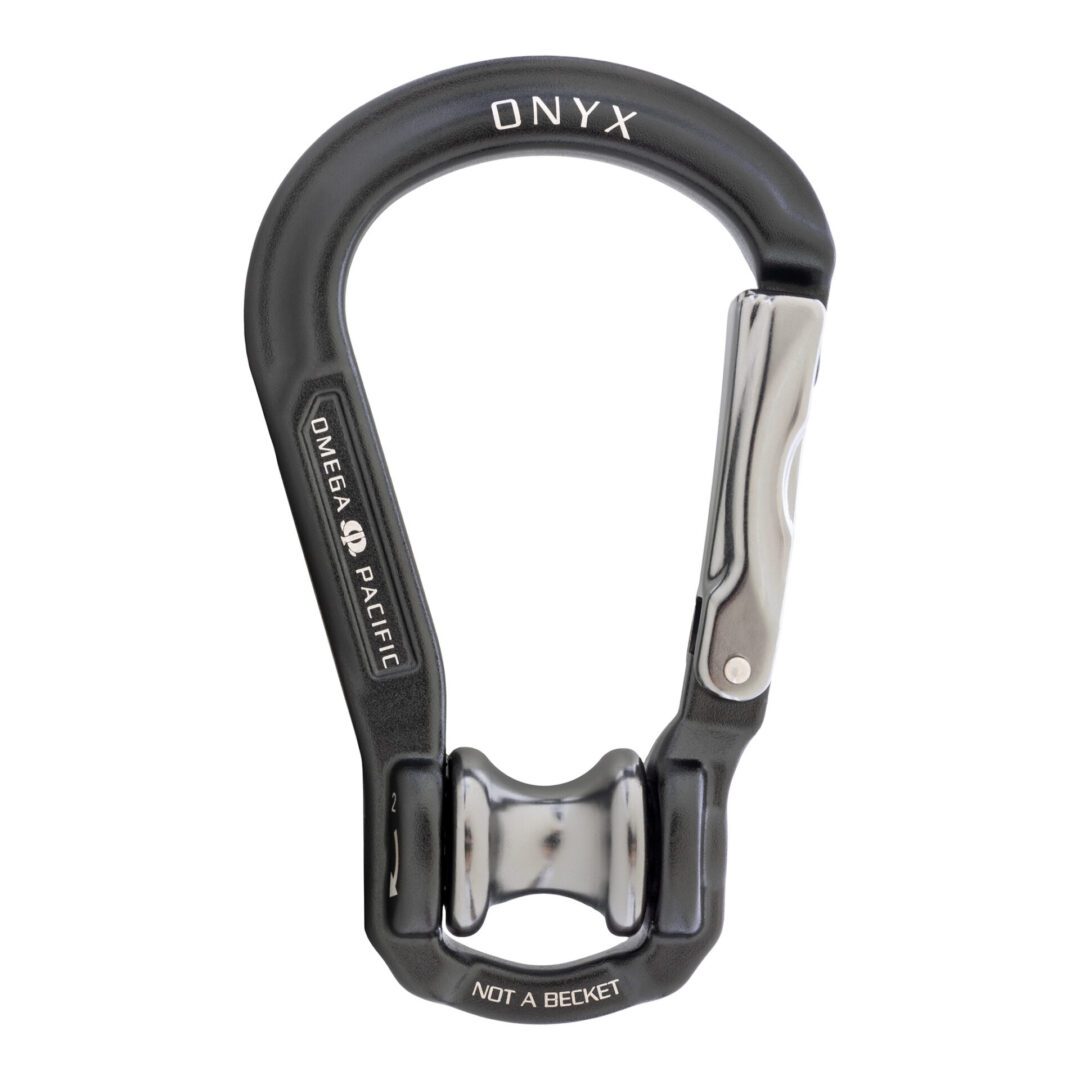

The onyx is a newly designed carabiner with an integrated pulley, featuring a true HMS style frame that allows for faster and easier connection of the carabiner to a wide variety of objects, as well as a widened sheave that helps ensure the rope stays in place. The Onyx is not designed to replace a pulley in every rigging application.
Acceptable Uses: The Onyx should ONLY be used in the following configurations
• Redirection Pulley in Rapid Ascent and Descent (RAD) configurations.
• Traveling Pulley for Mechanical Advantage Systems to be used towards the load, ahead of a suitable progress capture device for the raising system.
• Change of direction behind the systems main progress capture
TECHNICAL INFORMATION
• Weight: 4.9 oz
• Rope Size: 7 – 13 mm
• WLL: 4 kN
• Major Axis Strength: 20 kN
• Minor Axis Strength: 8 kN
• Open Gate Strength: 7 kN
Specifications
Omega Pacific Onyx Straightgate HMS w/Integrated Pulley Sheave
Part Number: OPPLONYX Weight: 0.4 lbs.
