Description

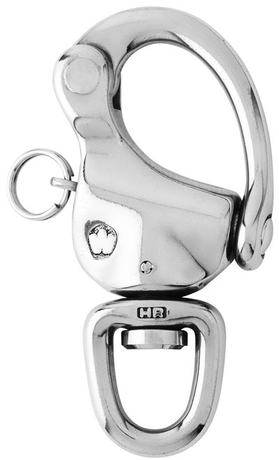

• HR Forged snap shackle (Grade 17.4 ph stainless steel) with swivel eye
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Applications
• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
• Materials: HR 17.4 PH stainless steel grade
• Length (mm): 70
• Working load (kg): 960
• Breaking load (kg): 2000
• Weight (g): 65

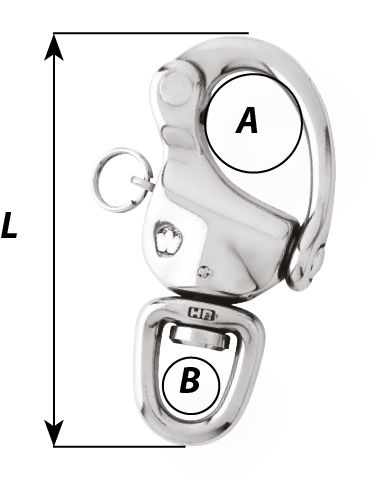

• A (mm): 16
• B (mm): 11
Specifications
Part Number: 2473 Weight: 0.6 lbs.
