Description

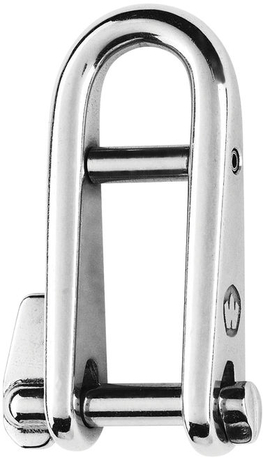

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads
Applications

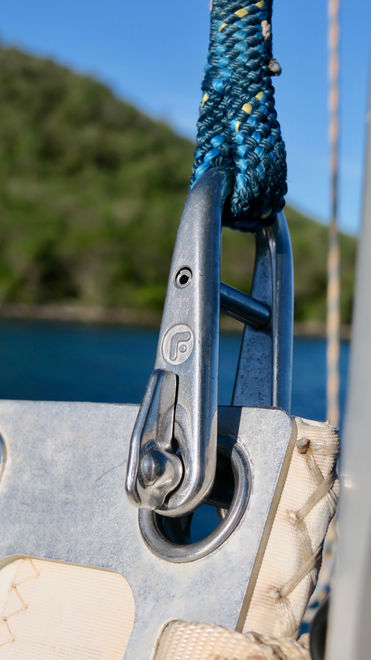

• Perfect product for halyards or applications requiring to open /close the shackle often
Specifications:
• Materials: 316 stainless steel grade
• Working load (kg): 400
• Breaking load (kg): 1200
• Weight (g): 31

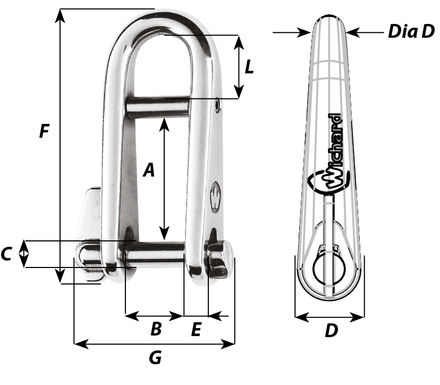

• A (mm): 37
• B (mm): 13
• C (mm): 5
• D (mm): 11
• D diameter (mm): 5
• E (mm): 4
• F (mm): 49
• G (mm): 31
• L (mm): 12
Specifications
Part Number: 81432 Weight: 0.6 lbs.
