Description

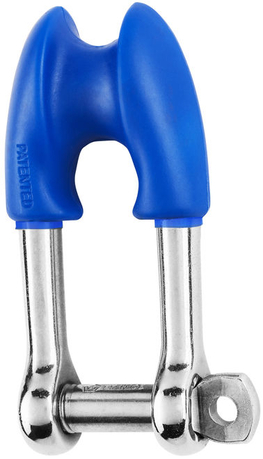

• Thimble shackle with captive pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding and additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads
Applications
• Mainsheet halyards
• Max rope size: 12 mm
Specifications:
• Materials: 316 stainless steel grade
• Working load (kg): 1000
• Breaking load (kg): 3000
• Weight (g): 78

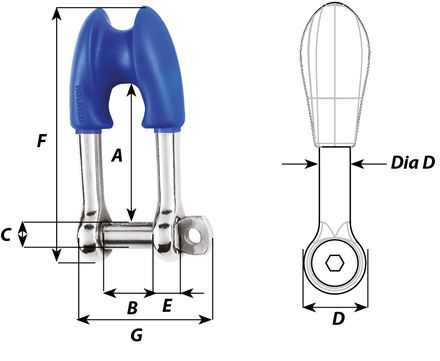

• A (mm): 41
• B (mm): 16
• C (mm): 8
• D (mm): 16
• D diameter (mm): 8
• E (mm): 7
• F (mm): 76
• G (mm): 42
Specifications
Part Number: 1494 Weight: 0.6 lbs.
