bmzj320 6
- Description
- Ask a Question
- Reviews
Material: aluminum alloy

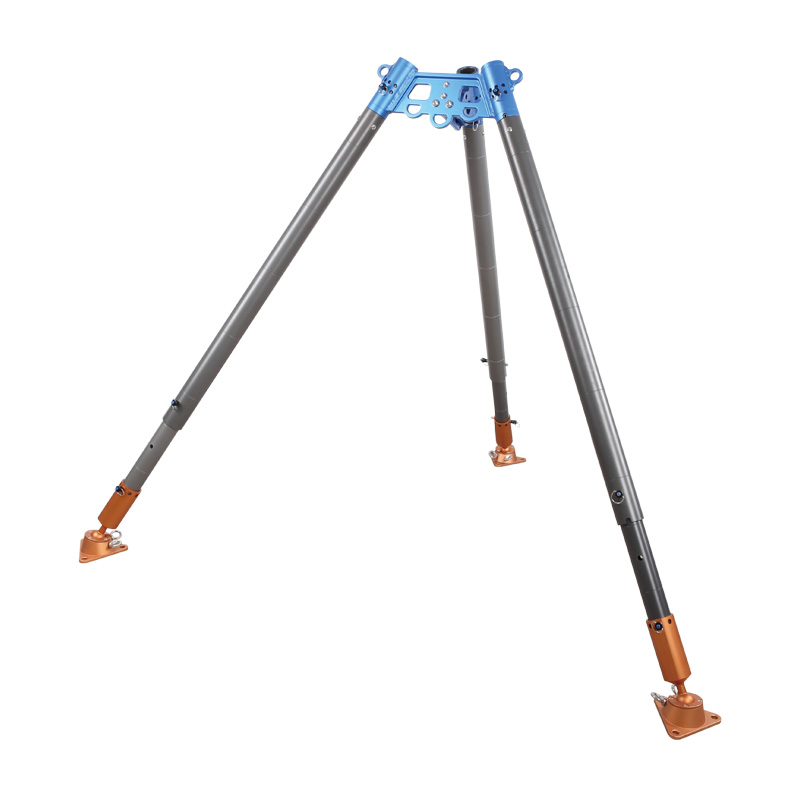

The multifunctional rescue tripod is an artificial high-fixed anchor point erection. It is a rescue equipment commonly
used by stretcher or rope technicians to enter and exit low rock corners. The purpose is to make the entry and exit
efficient and avoid the friction between the rope and the rock corner and rock surface to increase the dragging
efficiency.
1. It is composed of accessories with the following specifications.
• Inner tube diameter: 50mm, length 1120mm, adjustment hole spacing 140mm, 3 tubes in total.
• Outer tube diameter: 60mm, length 1120mm, adjustment hole spacing 140mm, 4 in total.
• R-type long pin specifications: 3/8-63mm, 11 in total
• R-type short pin specifications: 1/2 -41mm, 3 pieces in total
• Head and foot bag size: 34*50*26cm, 1 piece

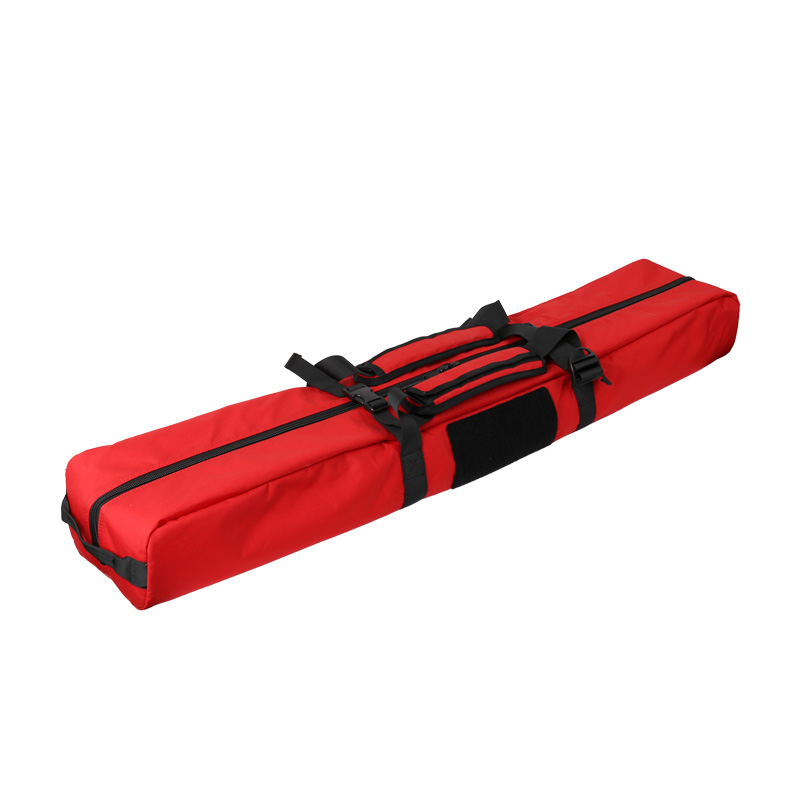

• Pole bag size: 113*15cm, 1 piece
• Latch bag size: 37*14cm, 1 piece

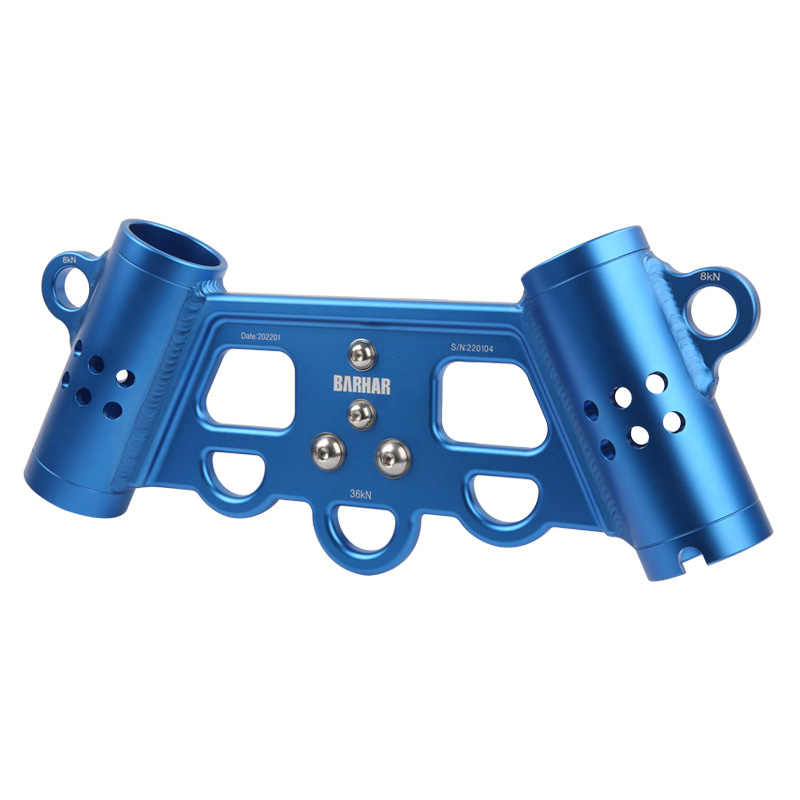

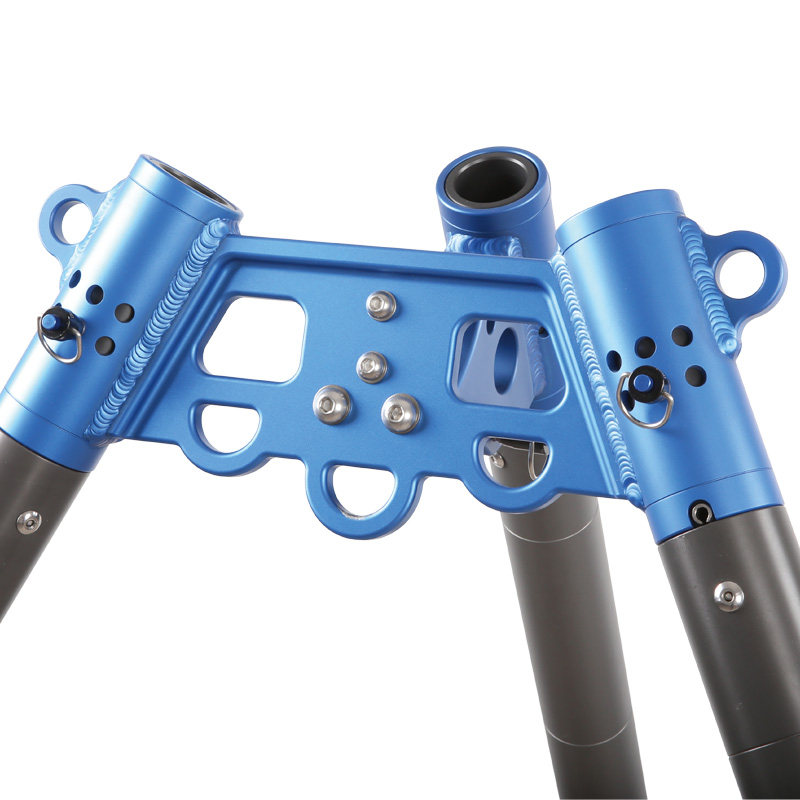

• A head: 1 piece, adjustment head: 1 piece
1 circular component plate,
• Tightening strap: width 25mm, length 300mm, 3 strips in total
• O-type 2-section safety hook, strength 25kN, 6 pieces in total

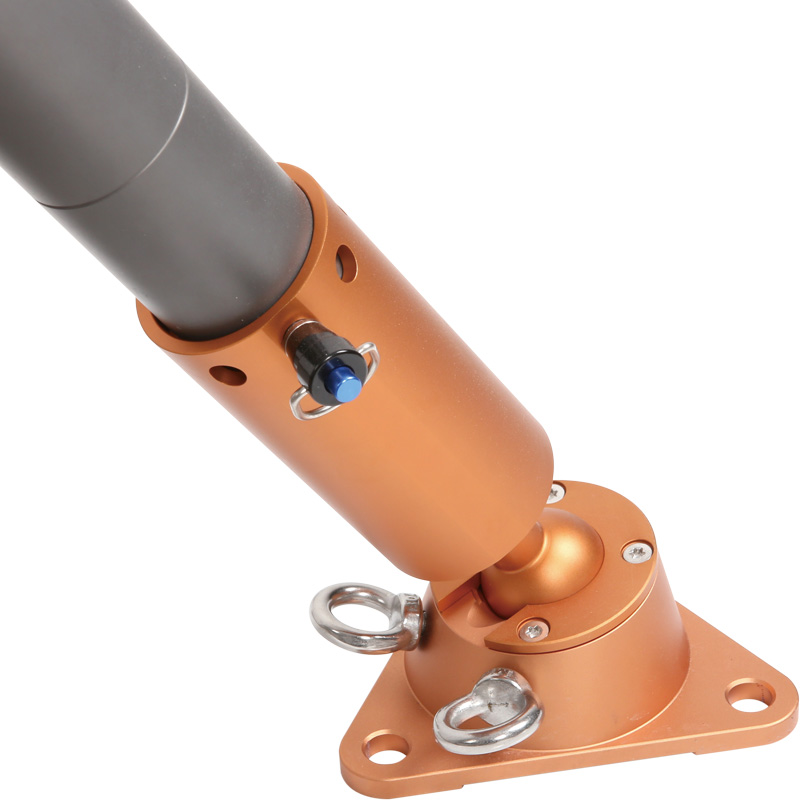

• 3 pointed feet, 3 flat feet
2. Multifunctional tripod combination parameters
• Height clearance of combined bracket: 1.8M, adjustable leg length 3.2m.
• Minimum working height 1200mm
• Effective working load of combined bracket: 300kg
• Combined bracket weight: about 28kg
• Strength of main hanging point of head A: 36kN
• Strength of outer anchor connection point: 8Kn
3. Multifunctional tripod, suitable for combined use in different terrain types and environments
• Using high-strength aluminum tubes and manufactured with seamless technology
Specifications
Barhar TRIPOD - FULL SET (7 TUBES)
Part Number: BMZJ320 Weight: 55.8 lbs.
