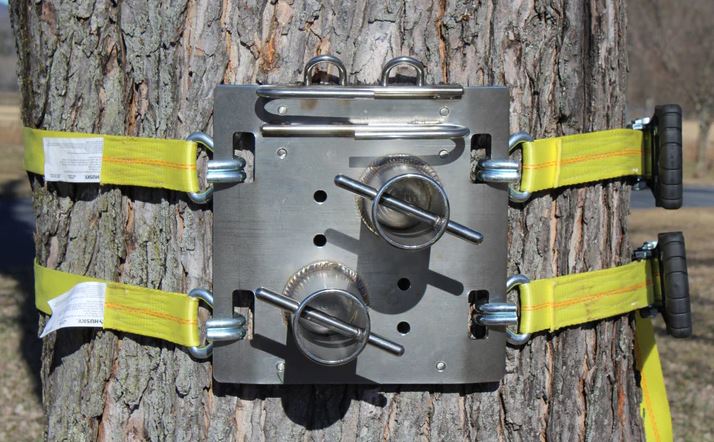

The CMI LCD (Lowering Control Device) aides a ground crew in adding friction to a lowering system. This allows large pieces of wood to be safely lowered to the ground. The LCD attaches to most trees using two heavy duty ratchet straps (not included). The LCD has a working load limit of 6,000 lbs/ 2721 kg. It weighs in at 16.9 lbs/ 7.66 kg and has a max rope diameter of ¾” (19mm). It can be mounted to just about any sized tree and is constructed of 304 stainless steel.

Specifications:
• Part# LCD
• WLL: 6,000 lbs. / 26 kN
• Weight: 16.90LBS
• Body Material: Stainless Steel
• Dimensions: 12” x 12” x 6”
• Max rope diameter: 3/4” / 19mm

Specifications

Product Name

Product URL

Name *

Email *

Phone *

Question

Write Review

CMI Lowering Control Device

$1,249.95 CAD

Product Details:

Part Number: LCD

Size:

n/a - 6,000 WLL

(size - strength)

Bollard Diameter:

n/a

Maximum Rope Size:

3/4” (19mm)

Version:

Stainless Steel

Length:

n/a

Options:

Unit Pricing

Quantity: *

- +

Total: $ 1,249.95

Industry:Arborist

Part Number: LCD Weight: 18.7 lbs.

• Description
• Ask a Question
• Reviews

The CMI LCD (Lowering Control Device) aides a ground crew in adding friction to a lowering system. This allows large pieces of wood to be safely lowered to the ground. The LCD attaches to most trees using two heavy duty ratchet straps (not included). The LCD has a working load limit of 6,000 lbs/ 2721 kg. It weighs in at 16.9 lbs/ 7.66 kg and has a max rope diameter of ¾” (19mm). It can be mounted to just about any sized tree and is constructed of 304 stainless steel.

Specifications:
• Part# LCD
• WLL: 6,000 lbs. / 26 kN
• Weight: 16.90LBS
• Body Material: Stainless Steel
• Dimensions: 12” x 12” x 6”
• Max rope diameter: 3/4” / 19mm
