FEATURES:
• Single user mechanical Winch for entering and exiting confined spaces
• 3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.
• Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
• Secondary braking system provides added safety in case of primary brake failure
• Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
• Includes 20" weather-resistant storage bag
• Winch is not intended for Material Handling purposes
• Complies with ANSI Z359.4-2013 and Z117.1-2009
MATERIAL SPECIFICATIONS
• Cable: 3/16" galvanized steel; 3,400 lb min. static strength
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Drive and Drum Gears: Plated alloy steel
PERFORMANCE SPECIFICATIONS
• Static Strength: 3,100 lb min.
• Handle Operation Force: 30 lb max.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
• 7297 - 60'
• 7298 - 120'
COMPLIANT WITH:
• OSHA 1926.502, 126.1200 and 1910.146 ANSI Z359.4-2013 and Z117.1-2009
Specifications

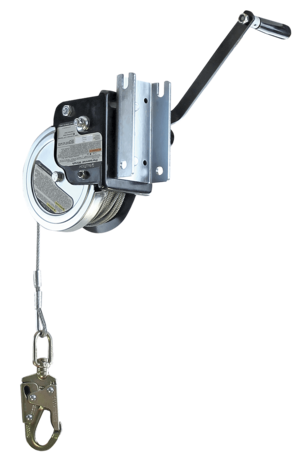

Falltech FallTech Personnel Winch for Tripods and Davits with Galvanized Steel Cable
Part Number: 7297 Weight: 26.4 lbs.
