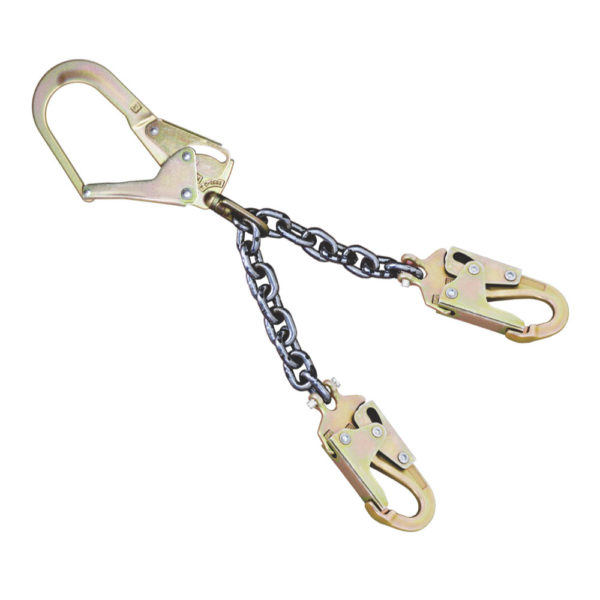

Rebar chain positioning device, one 2-1/4” swivel rebar hook on top and two 3/4” snap hooks on opposite ends. Meets or exceeds ANSI Z359.3-2007
Key Features:
DESIGN:
• Double, Y shaped lanyard.
• This positioning device incorporates a high tensile strength chain and has swivel rebar hook.
• The two ends of the chain have the special forged clevis snap hooks used for positioning.
• Available Length: 24”
CHAIN:
• 0.31” diameter link of chain
• Grade of Chain: Grade 80
• Tensile Strength: Min. 5000 lbs.
METAL COMPONENT:
• Material: Alloy Steel
• Plating: Zinc plated
• Finish: Deburred & polished
WEIGHT:
• 24 inch: 4.9 lbs. ± 0.2 lbs.
VITAL TEST COMPLIANCE:
• Static Strength: 5000 lbs. for 1 minute
• Dynamic Strength: When tested with 282 lbs. with a free fall to generate 3600 lbs. force on the receiving structure mass held clear off the ground for a period of 1 minute.
Specifications
Maple Leaf Ropes Rebar Chain Positioning Device - Belly Hooks 24" - Non Swivel Hook
Part Number: A00004 Weight: 5.4 lbs.
- Description
- Ask a Question
- Reviews
Rebar chain positioning device, one 2-1/4” swivel rebar hook on top and two 3/4” snap hooks on opposite ends. Meets or exceeds ANSI Z359.3-2007
Key Features:
DESIGN:
• Double, Y shaped lanyard.
• This positioning device incorporates a high tensile strength chain and has swivel rebar hook.
• The two ends of the chain have the special forged clevis snap hooks used for positioning.
• Available Length: 24”
CHAIN:
• 0.31” diameter link of chain
• Grade of Chain: Grade 80
• Tensile Strength: Min. 5000 lbs.
METAL COMPONENT:
• Material: Alloy Steel
• Plating: Zinc plated
• Finish: Deburred & polished
WEIGHT:
• 24 inch: 4.9 lbs. ± 0.2 lbs.
VITAL TEST COMPLIANCE:
• Static Strength: 5000 lbs. for 1 minute
• Dynamic Strength: When tested with 282 lbs. with a free fall to generate 3600 lbs. force on the receiving structure mass held clear off the ground for a period of 1 minute.
