1/2" arbor rigging line is the go-to rope for everyday rigging with a tightly braided sheath that protects the core without sacrificing handling. Made in the USA.

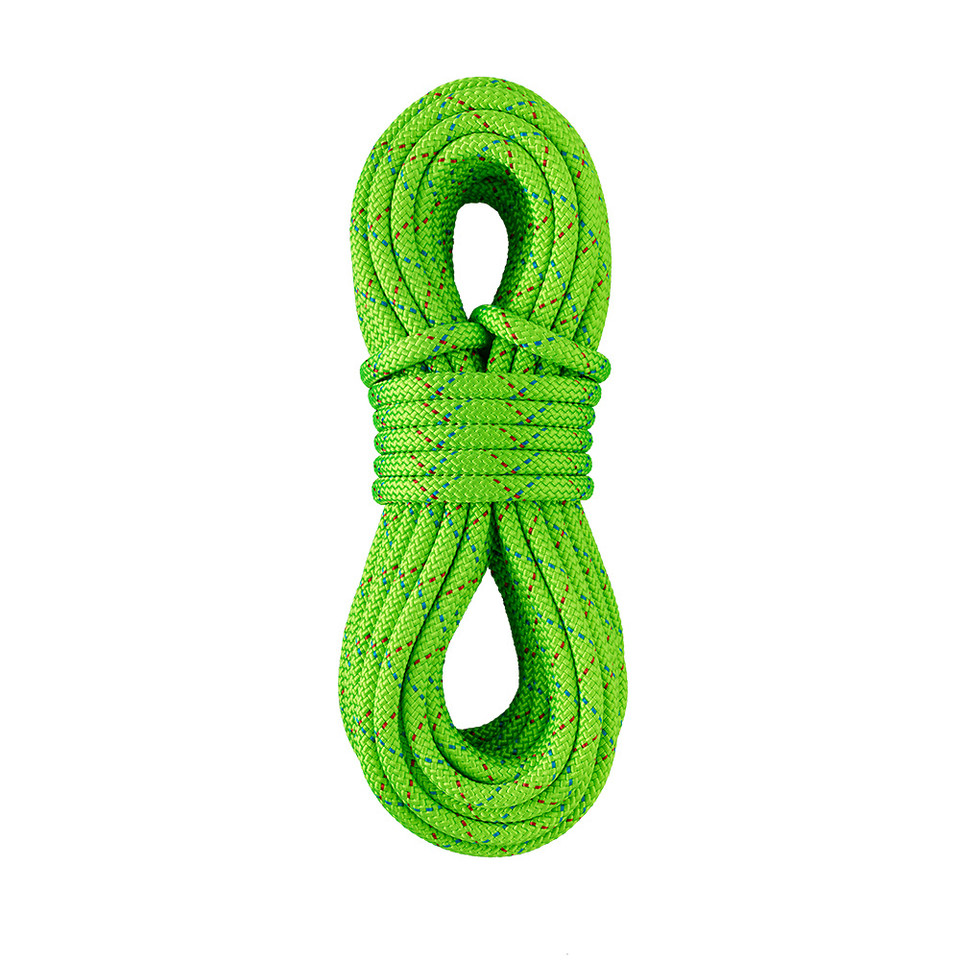

1/2” Arbor Rigging Line
Core/Sheath: Nylon/Polyester
The ½” Atlas rigging line is the thinnest diameter in our series of arbor rigging lines, ideal for lighter-duty dynamic rigging. Like the 9/16” and 5/8” the ½” version has a redesigned double-braid construction that provides a huge increase in overall strength. The new core construction has lowered the static elongation but still allows rope to absorb energy/impact force and can limit peak forces when catching wood in negative rigging applications. The tightly woven polyester sheath resists picking, and protects the core without sacrificing handling and flexibility. The ½”, along with the other diameters in the Atlas series are ideal for use in a Port-a-Wrap, capstan winch or rigging blocks. The Atlas is spliceable or can be ordered with a sewn eye for knotless rigging.
Specifications:
• Diameter (mm): 13.0
• Diameter (in): 1/2
• ABS Rating (kN): 51.2
• Elongation at 300 lb (%): 0.9
• Weight (lb/100'): 7.9
• Elongation at 10% MBS (%) : 4.1
• ABS Rating (lb): 11,500
• Sewn Eye MBS (lb): 9,000
• ANSI Z133
Specifications
Sterling Atlas Rigging Line
Per Foot: $2.36
