Wichard Captive Pin Bow Shackle

1441 2

1443

Description
Ask a Question
Reviews

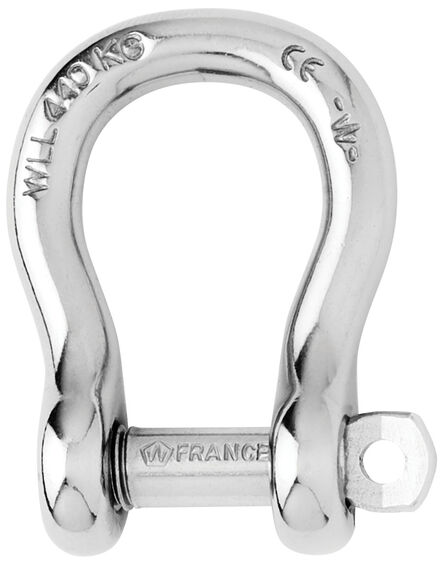

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Technical Information:
• Materials: 316 stainless steel grade
• Working load (kg): 320
• WLL (kg): 200
• Breaking load (kg): 1000
• Weight (g): 10

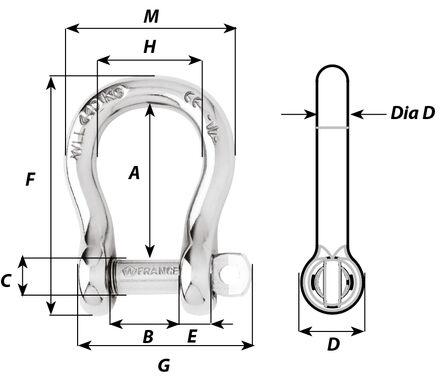

• A (mm): 18
• B (mm): 8
• C (mm): 5
• D (mm): 9
• D diameter (mm): 4
• E (mm): 4
• F (mm): 28
• G (mm): 20
• H (mm): 13
• M (mm): 21
