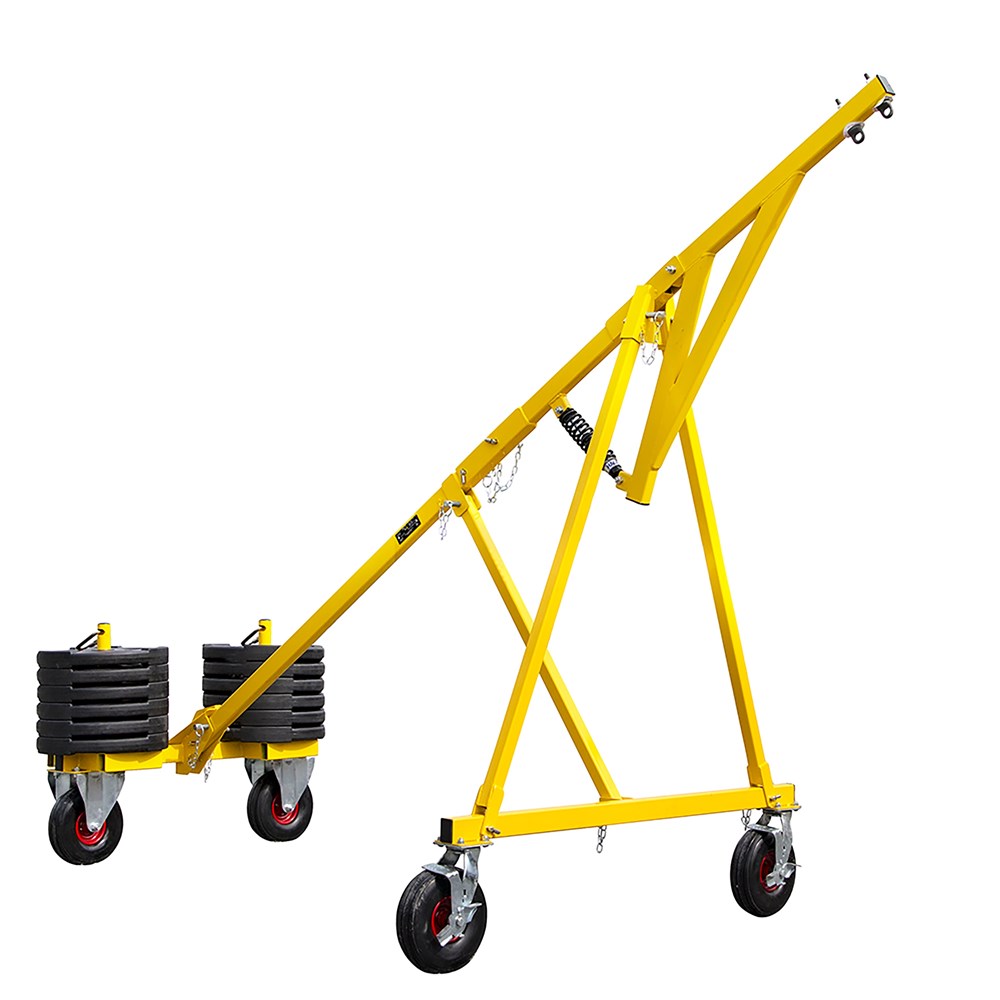

The DW200.3 A-Frame has been designed for use with Olympic Weight Plates. The A-Frame requires 12 x 25kg weight plates, which can be supplied. The device can also be purchased without weight plates, reducing shipping costs by allowing users to purchase weights locally.
The A-Frame is fitted with pneumatic tyres as standard, or can be fitted/supplied with solid wheels, on request.
Approved Standards:
• CE 0120 EN795:2012 TYPE E
• PD CEN/TS 16415: Advisory standard - Recommendations for use of anchor points by more than one person simultaneously (fully rated for two person rescue loads).
• IRATA International Code of Practice (ICOP) Compliant: Meets the 15kN static load testing, making them the only ICOP compliant Deadweight Anchors available on the market.
Features & Applications:
• Suitable for use on flat roof surface (Only 300mm upstand required)
• 2180mm (7'1") High anchor points
• Enables user to easily start their descent
• No damage to surfaces - Does not require penetration of roof membrane

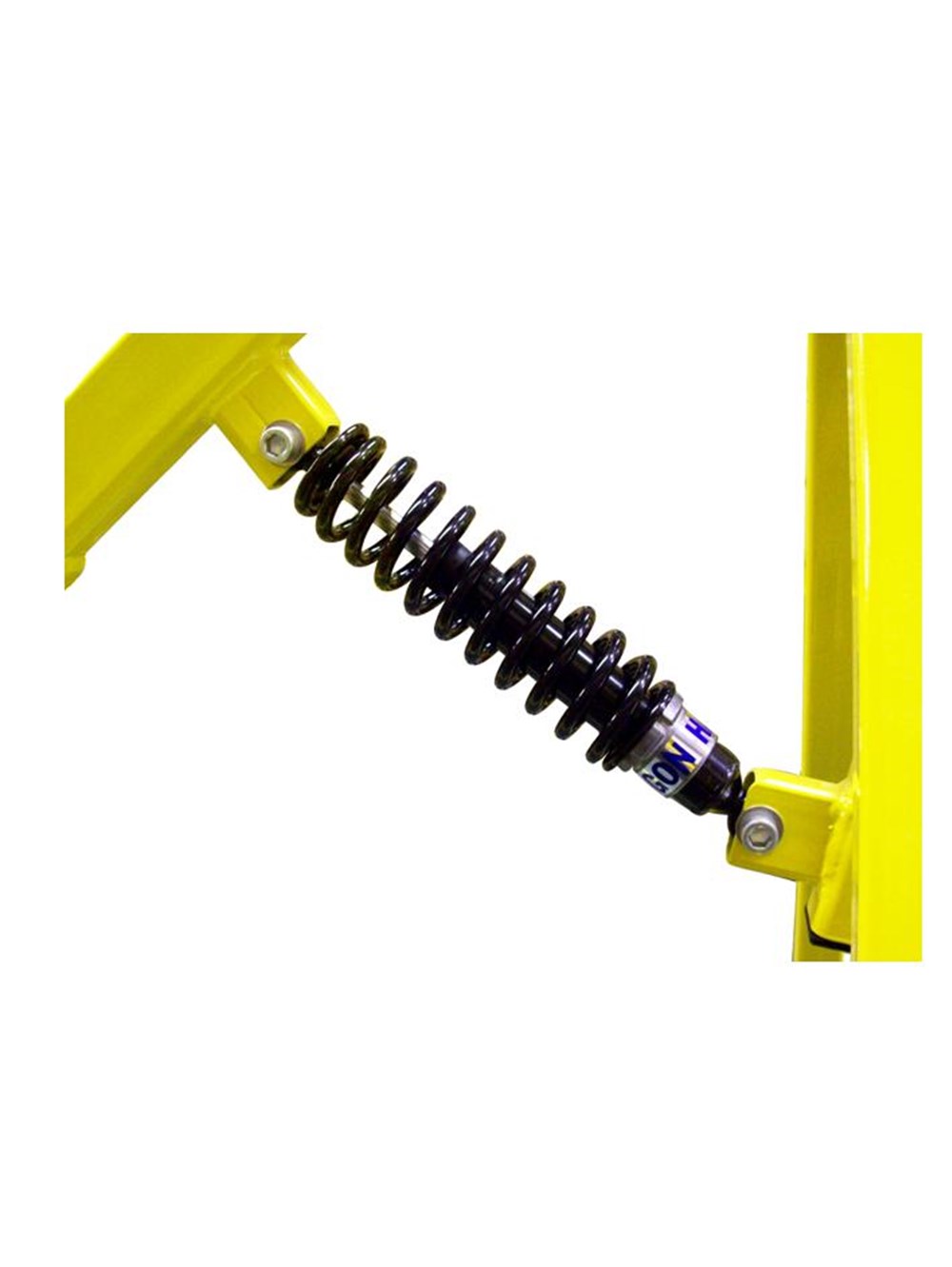

• Built in shock absorber
• Unit can easily be moved sideways reducing the need for re-rigging
• Minimal assembly required
Technical Information:
• Number of persons: 2
• (SWL) Safe Working Load (kg): 200
• (SWL) Safe Working Load (lbs): 440
• Serial numbering: As standard
• Finish: Powder coated
• Colour: Yellow
• Weight (grams): 87kg frame, plus 12 x 25kg weight plates
• Weight (ounces): 191lb frame, plus 12 x 55lb weight plates
Specifications
ISC A-Frame Deadweight Anchor
Part Number: DW200.3-A1 Weight: 960.3 lbs.
