Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

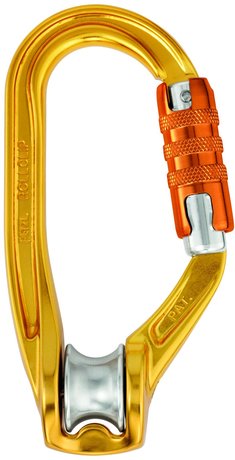

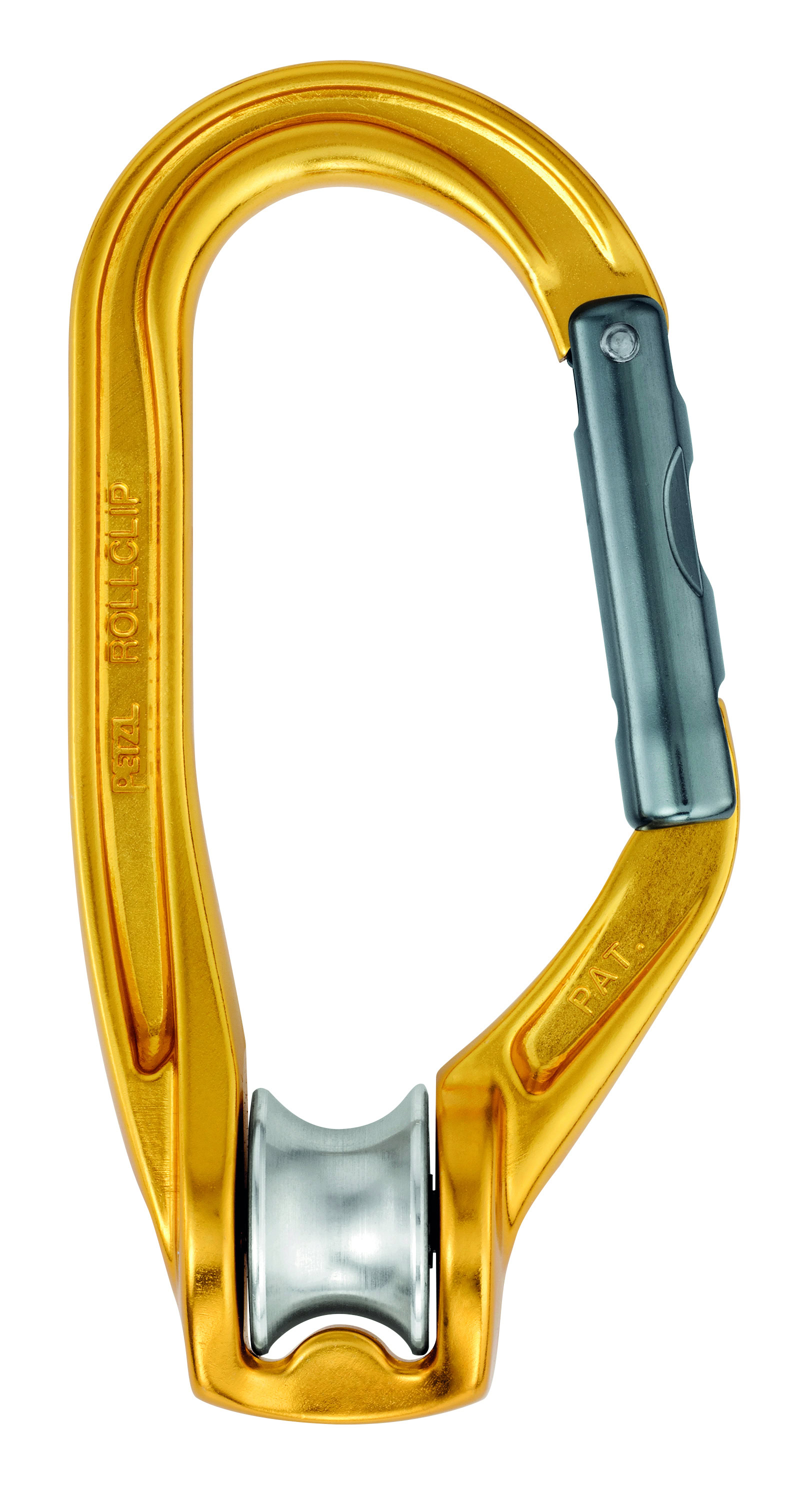

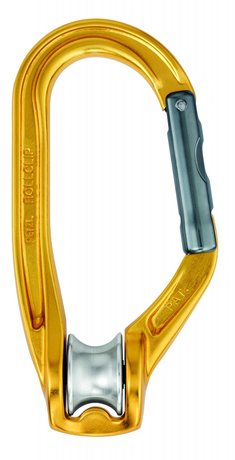

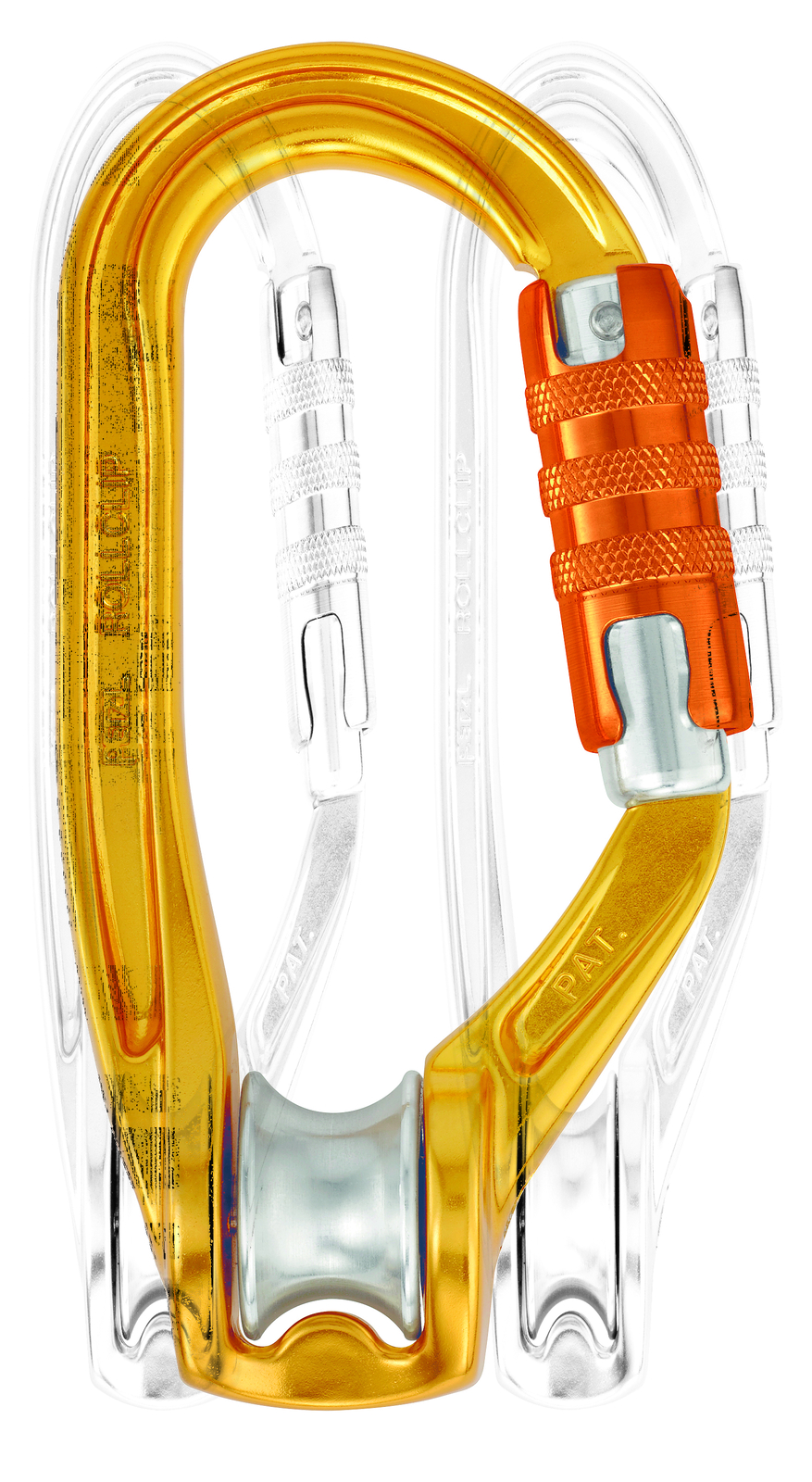

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Detailed description:

• Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

•H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion

•Available in versions with or without TRIACT-LOCK locking system

Specifications:
• Material(s): aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN

Specifications

Product Name

Product URL

Name *

Email *

Phone *

Question

Write Review

Petzl ROLLCLIP A pulley Carabiner

$54.95 CAD

Product Details:

Part Number: P74

Locking Mechanism:

STRAIGHT-GATE - Major-4500 / Minor- 1800

TRIACT-LOCK - Major-4500 / Minor- 1800

(locking mechanism - strength)

Color:

Gold

Material:

Aluminum

Option 4:

n/a

Option 5:

n/a

Options:

Unit Pricing

Quantity: *

- +

Total: $ 54.95

Industry:Industrial, Safety/Rescue, Arborist, Theatrical

Part Number: P74 Weight: 0.3 lbs.
